SY M5-7120 Series Pneumatic Solenoid Valves feature compact lightweight bodies with outstanding flow capacity to save installation space, available for single installation or manifold assembly. Equipped with low-power coils, they can be directly connected to PLC without relays for simpler wiring and lower energy consumption. The valves deliver ultra-fast response and stable high-frequency switching. Built-in wear-resistant H-NBR seals and pilot filters prevent air leakage and jamming, supporting up to 50 million switching cycles. Centralized exhaust design reduces noise and oil mist, making them ideal for clean workshops of electronics, food and medical industries. With IP67 dustproof and waterproof rating, wide pressure adaptability, multi-direction air ports and convertible wiring terminals, the modular interchangeable structure brings easy maintenance. Widely applied in automatic assembly lines, stamping and sorting machinery.

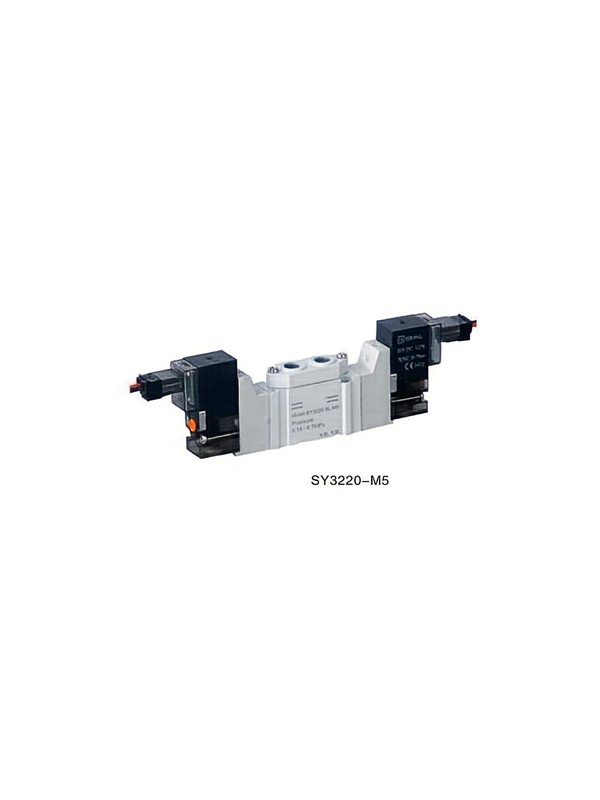

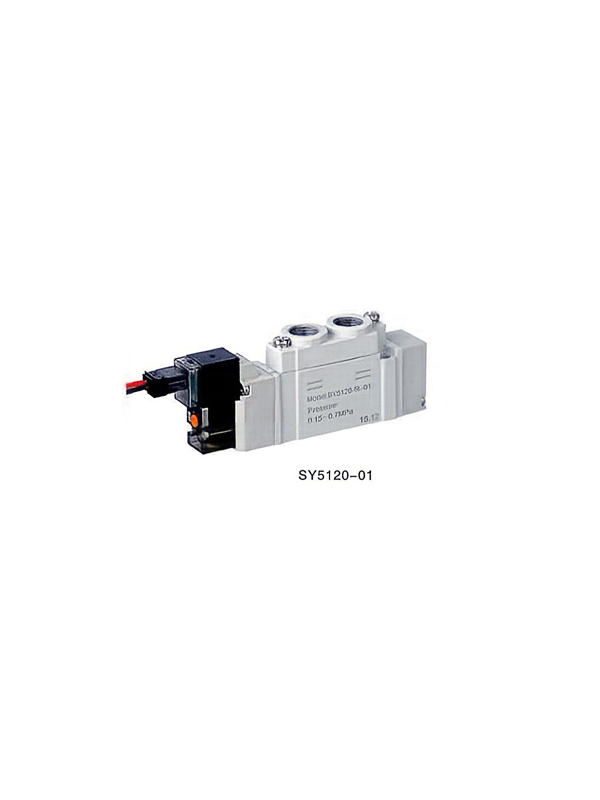

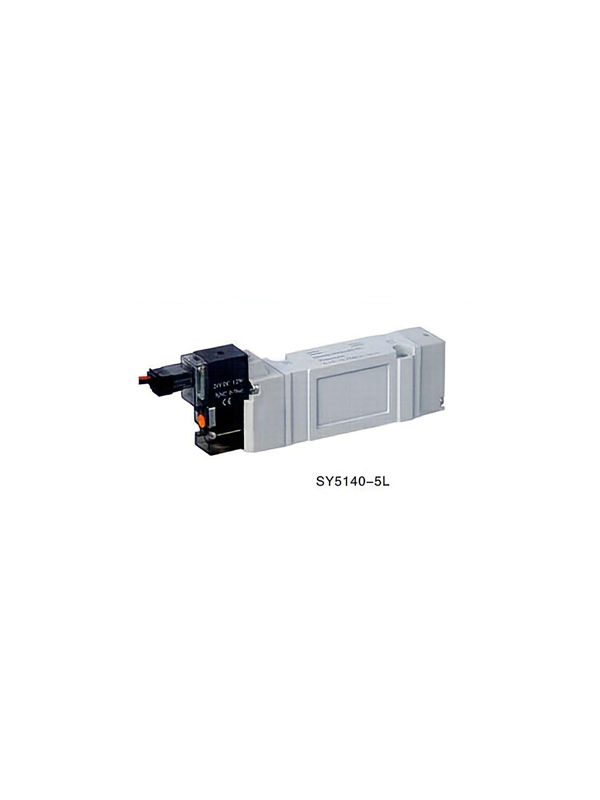

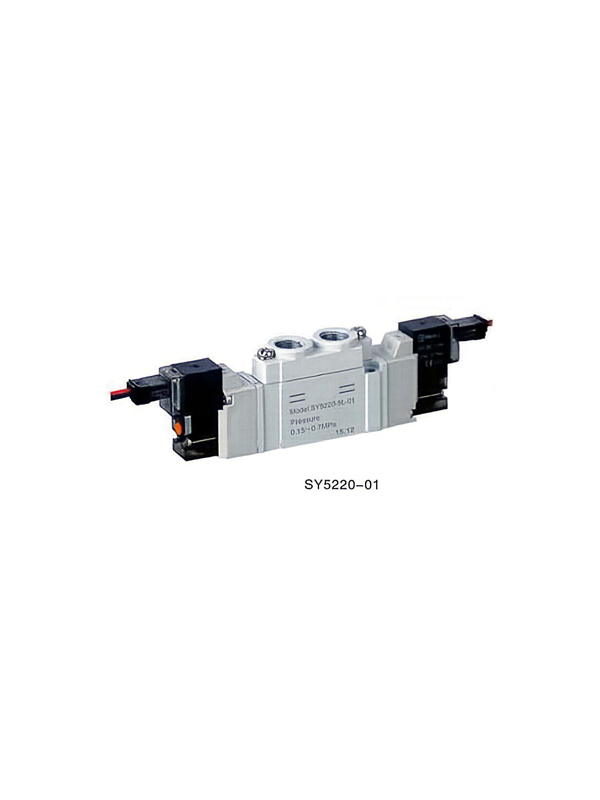

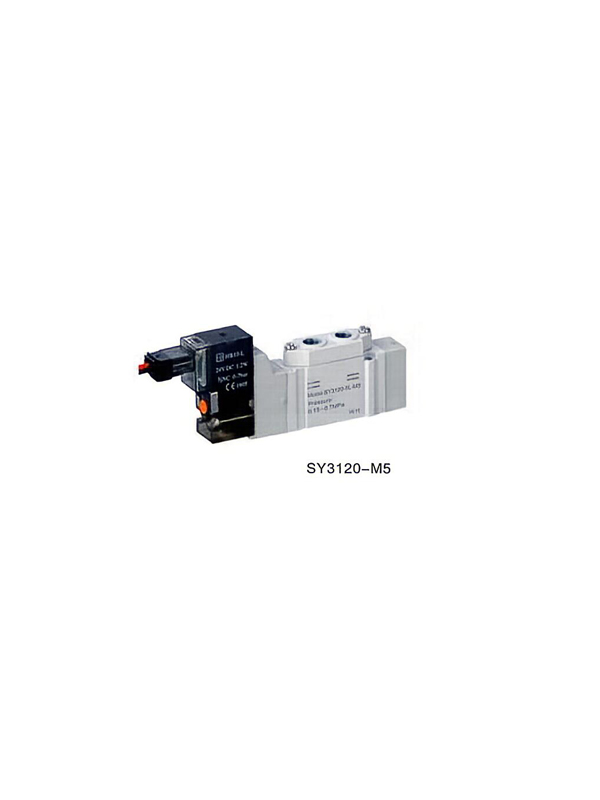

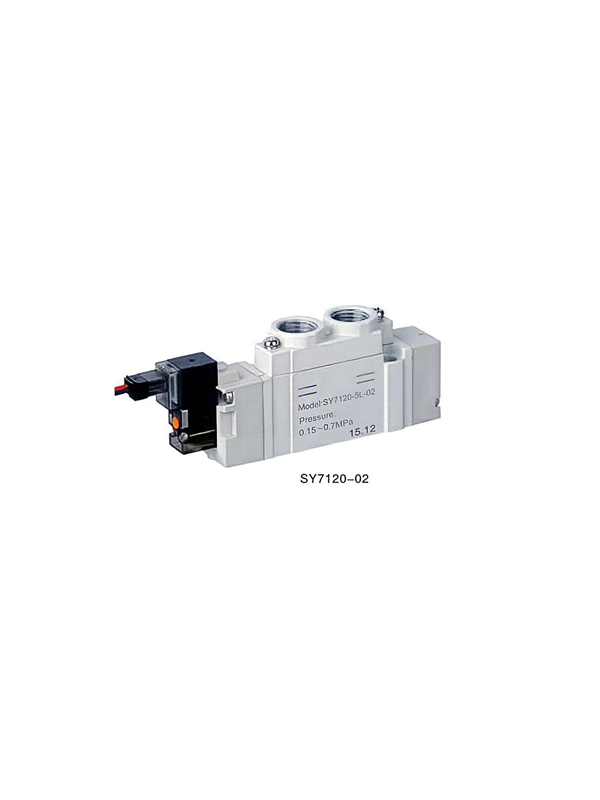

SY M5-7120 Series Pneumatic Solenoid Valves

• Compact size with high flow rate：30%~80% larger flow capacity than conventional valves of same width, save cabinet installation space, support manifold grouping.
• Ultra-low power consumption：Standard coil only 0.35~0.5W, energy-saving type down to 0.1W, direct PLC control without relay.
• Fast response & high switching frequency：Response time ≤10ms under 0.5MPa, ideal for high-speed automated machinery.
• Super long service life：Up to 50 million switching cycles, wear-resistant H-NBR seals, built-in pilot filter to prevent jamming.
• Integrated internal pilot exhaust：Centralized exhaust design reduces oil mist and noise, clean for medical, food & electronics workshops.
• Flexible mounting & wiring：Multi-direction port layout, horizontal/vertical pluggable terminals, body ported or base mounted optional.
• Wide working condition & high protection：IP67 protection, pressure range -100kPa~0.7MPa, suitable for various harsh production lines.
• Modular interchangeable design：SY3000/5000/7000 manifolds universal, easy replacement and low maintenance cost.
